Thermo ash

Thermo ash is a popular wood species for lamellae cladding. Its dark brown character gives a nice warm look and the thermo treatment makes the wood lamellae quite resistant as outdoor cladding.

Average density

617 kg/m3

Dimensional stability

High

Duration class EN 335

1

Minimum life expectancy

50 years old

System fire class (end-use)

B-s1,d0

Thermo pine

Thermo pine for lamellae cladding tops the favourites list. The wood is quite popular due to its warm appearance and beautiful knots that give buildings a varied look. In addition, pine is budget-friendly and, not least, it meets the fire safety requirements, B-s2,d0.

Thermo pine has high dimensional stability and longevity, guaranteeing a beautiful facade for generations.

Average density

432 kg/m3

Dimensional stability

Very high

Duration class EN 335

2

Minimum life expectancy

30 years old

System fire class (end-use)

B-s2,d0

Thermo pine premium

Thermo pine premium is chosen when you want brownish lamellae with an almost crack-free structure. This results in a facade with a very clean and exclusive look.

The properties are the same as thermofyre with very high dimensional stability, long lifetime and B-s2,d0 documentation.

Average density

432 kg/m3

Dimensional stability

Very high

Duration class EN 335

2

Minimum life expectancy

30 years old

System fire class (end-use)

B-s2,d0

Western Red Cedar

Western red cedar is a good choice for lamellae cladding. It is not heat-treated but has a natural resistance to rot and fungus, similar to heat-treated wood.

The wood species also has a low density, which provides good insulation and a light and soft material to work with. Despite this, it is quite durable and has a long lifespan. It is also end-use tested as a facade system with a documented fire rating.

Average density

465 kg/m3

Dimensional stability

Very high

Duration class EN 335

2

Minimum life expectancy

30 years old

System fire class (end-use)

B-s2,d0

Thermo ayous

Thermally treated ayous is a wood species with a very low density and quite high dimensional stability, so the wood does not warp.

The lamellae have a dark brown colour, which gives a certain elegance to its expression.

Average density

323 kg/m3

Dimensional stability

Very high

Duration class EN 335

2

Minimum life expectancy

30 years old

System fire class (end-use)

B-s2,d0

Accoya

Accoya is a beautiful sustainable material with Cradle to Cradle Gold certification. The look is bright and natural, the quality is high and the lifespan is an impressive +50 years.

The wood is not thermo-treated, but manufactured through a process where its cell structure is modified to improve its resilience and dimensional stability.

Accoya is suitable for buildings where the fire classification D-s2,d2 can be used.

Average density

525 kg/m3

Dimensional stability

Very high

Duration class EN 335

1

Minimum life expectancy

+50 years

System fire class (end-use)

D-s2,d2

Open facade system with wooden slats

What is woodfac click?

certified and fire approved facade system

Woodfac Click is a climate-friendly and fireproof Facade solution like no other.
The system is created as an open Facade solution that combines design, aesthetics and flexibility in a unique way.

Wooden slats are mounted on sturdy aluminum construction - horizontally or vertically and with exactly the spacing and look you want.

This design-free structure allows you to play with light, shadows and material combinations to make the architecture appear vibrant and dynamic.

Whatever the size and style of the project, we deliver a complete solution that adapts to both architectural visions and construction requirements. With Woodfac Click , the only limit to the facade design is your imagination.

With Woodfac Click , the only limit to the facade design is your imagination.

Click
Panel

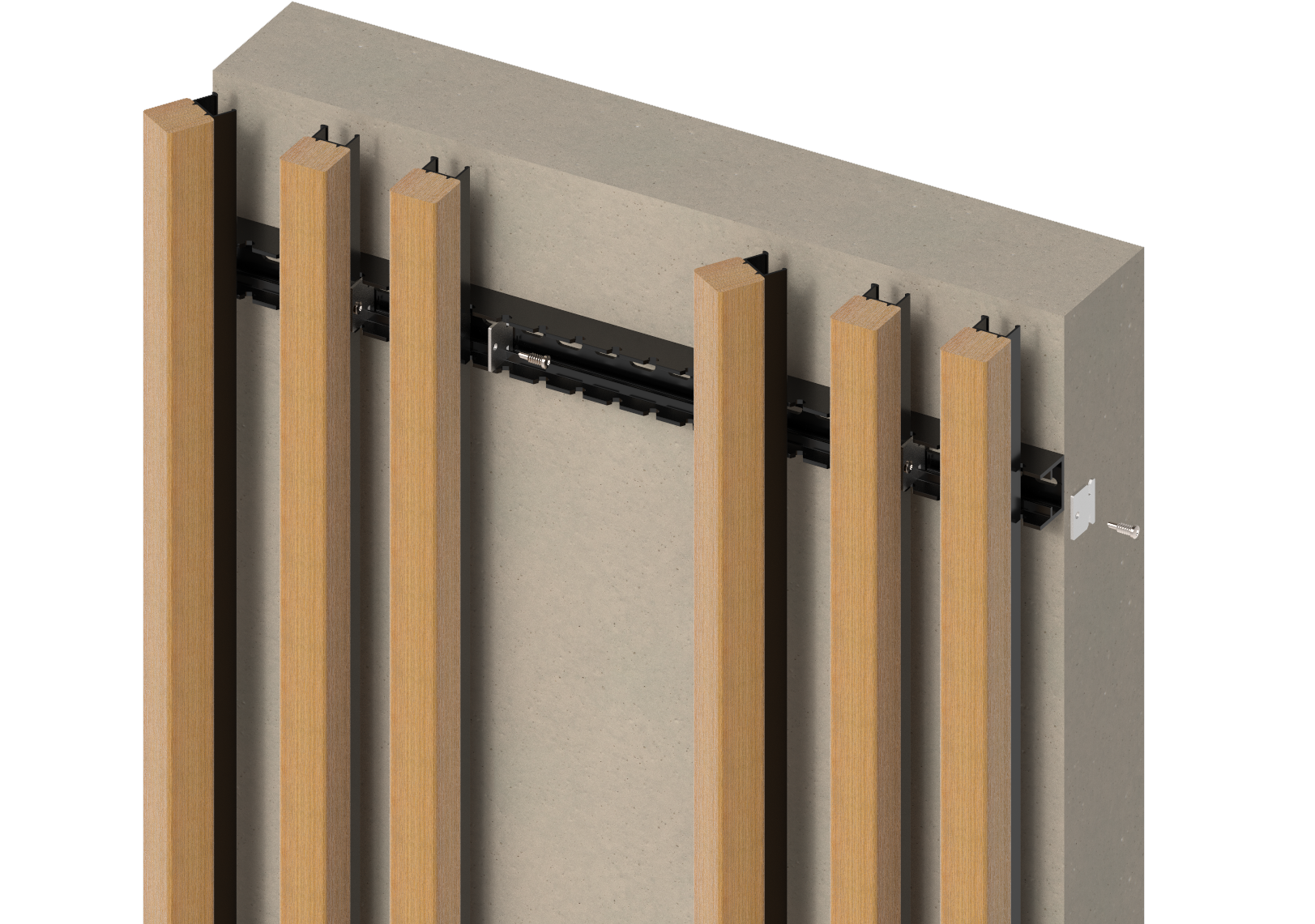

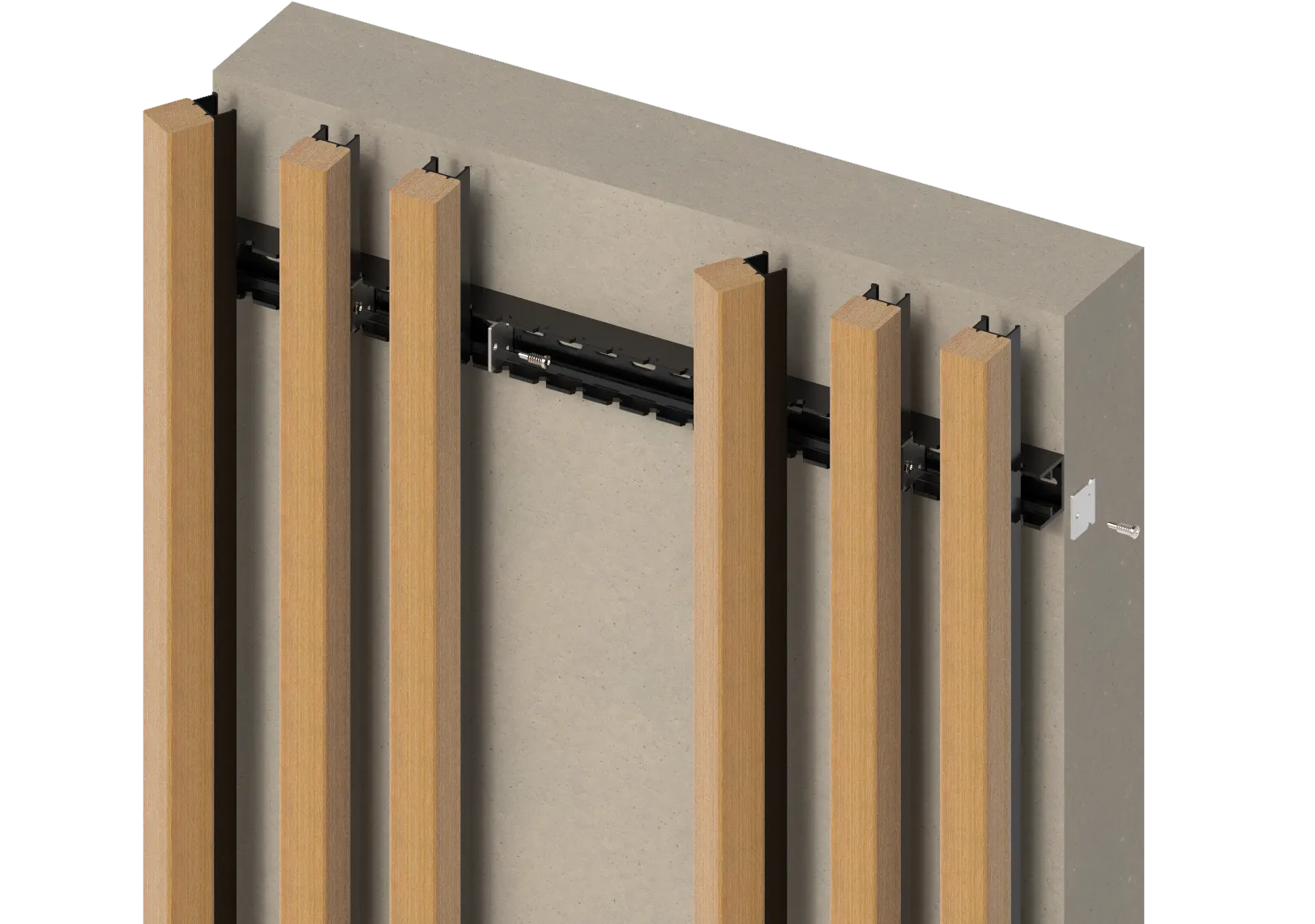

Woodfac Click is an open system with optional timber lamellae on an underlying aluminium structure. With views of the building's load-bearing facade, it is possible to compose a living architecture, created through light, shadow, materials and design.

The system offers corner solutions, various cover profiles, solutions for curved Facades as well as reinforcement profiles that enable large clearances both horizontally and vertically.

Woodfac Click is particularly suitable for cladding parking garages.
The open facade system makes it easy to give parking garages a certain wow effect. Many parking garages are built among beautiful apartment buildings and why not make them as inviting to look at as their environment and surroundings.

With wooden lamellae as cladding, you have the opportunity to construct beautiful and timeless parking garages with a natural and warm appearance that develops a beautiful patina over time.

Woodfac Panel is a closed system that acts as a building envelope. The system consists of optional wooden lamellae mounted on aluminium panels.

The aluminium panels protect the building from the weather and have an underlying ventilation system that allows the facade to "breathe".

The panel solution includes variable single, double and corner panels with punched holes for facade screws that are hidden when the panels are clipped together.

The system offers a wide range of accessory profiles for finishing and framing doors, windows (glazing profiles) and other facade elements.

Fire safety End Use classification tested and approved according to EN 14915

Durability, approved according to the EN 16755 standard

Maintenance free

No visible screws

Built-in thermal movement

Unlimited design freedom

Quick and easy installation

Modular system

Fire safety End Use classification tested and approved according to EN 14915

Durability, approved according to the EN 16755 standard

Maintenance free

No visible screws

Built-in thermal movement

Unlimited design freedom

Quick and easy installation

Modular system

Rortunet

Skagen Salmon

FOG

Aggersvold Estate

Plast-Line

Cronhammar P-house

Aalborg Forsyning

Horsens Gymnasium

Easy mounting

The system consists of three components that are set up in just three steps.Click on the link to see how this is done. Under "downloads" you will also find an installation guide.

Read more about installation

Wooden slats

Wooden slats are produced from FSC® or PEFC™ certified wood with a guarantee of responsible and sustainable forestry.

Cradle to Cradle certified fire retardant is used for fireproofing wood slats, which consists of 100% natural substances, is 100% biodegradable, non-toxic and free of VOC emissions.

The thermal treatment of the lamellae ensures dimensional stability and unique longevity with a durability of up to +50 years, depending on the wood species.

Thermal movement

Thermal movement refers to the natural expansion and contraction of materials as a result of temperature changes.

Thermal movement is integrated into all our facade solutions, allowing the individual components of the systems to move individually in relation to each other. This ensures that there are no internal stresses, strains or structural damage in both individual components and as an overall facade solution.

Aluminium structure

The structure and profiles of the facade system are made from certified recycled aluminium.

Greenline® aluminium is 100% collected and recycled aluminium with a very low carbon footprint of only 1.8 kg CO2-eq/kg compared to primary aluminium, which has a footprint of 11.1.

Wooden slats

Thermal movement

Aluminium structure

Stylish Facade cladding for all types of new builds or renovations

Scandinavian architecture is known for its simple, functional and aesthetic design and, not least, sustainable efforts. And these are precisely the principles behind the Woodfac facade system.

With lamellae in optional wood species, you get a natural and inviting facade that blends in beautifully with its surroundings and can be designed exactly as desired.

Woodfac is fire-engineered system tested and a very safe and advantageous choice for an environmentally and economically sustainable Facade solution. Facades clad with Woodfac wood lamellae are a maintenance-free and unique system like no other.

Optional wooden slats

Nordisk Profil recommends the following certified wood species for Facade cladding based on longevity, dimensional stability and fire performance. All types combine aesthetics, durability and sustainability with the guarantee of high quality Lamellae . Click on each one to read more.

Thermo ash

Thermo pine

Thermo pine premium

Western Red Cedar

Thermo ayous

Accoya

EXCLUSIVE EXPRESSION and uncompromising quality

At Nordisk Profil , we deliver Facade solutions that stand out through carefully selected materials, stylish design and high functionality. We create solutions that not only protect the building, but also enhance the overall impression and give the architecture an exclusive look.

We never compromise on the details - from Lamella to installation, everything is thought through and executed with precision.

The installation is carried out without visible screws in the slats, resulting in a crisp and harmonious look. The result is a facade that combines aesthetics with durability and minimal maintenance - designed to impress for years to come.

‍

Easy and precise mounting

Woodfac Click is designed to make façade installation as simple as possible - almost like building with LEGO.

The system offers great design freedom with countless combination options, is easy to handle and creates a precise and sharp result.

The assembly consists of three components that are assembled in just three steps. The finished result is both robust and elegant - completely free of visible screws and joints. If the facade needs to be extended later, it can be done quickly and seamlessly without visible transitions or construction challenges. The modular system also makes it easy to dismantle the façade and reuse it for other façade projects.

‍

Fire resistant facade system

At Nordisk Profil you get facade systems with full fire approval and documentation that comply with international standards.

The lamella cladding is end-use tested and documented according to EN 13501-1 according to standard EN 13823.

Woodfac is thus a system solution that meets the fire requirements according to EN 14915. EN 14915, and is the only facade system on the market that has been tested and passed the B-s1,d0 and B-s2,d0 classification.

We have also tested and passed the reaction-to-fire facade test according to ISO 13785-1 with guarantee and quality seal for fire-resistant materials.

Nordisk Profil advises on fire classes, requirements and documentation for Facade solutions with wooden slats and helps to ensure passive fire protection in the initial phase of the building project.

Read more about fire & safety here.

‍

Do you need help with a facade design?

Papirøen

OUTDOOR WOODEN LAMELLAE,
WHEN THE FACADE NEEDS TO IMPRESS

Wood is a great carbon reducing material to use as an outdoor facade panel.

Nordisk Profil recommends different types of wood, all of which are particularly suitable for exterior cladding due to their dimensional stability, resistance, durability and fire class.

They vary in expression in terms of colours and knots, but regardless of type, facade lamellae will patina over time and give a look in more greyish tones and shades. The patination depends on location, but will always be affected by the surrounding environment,

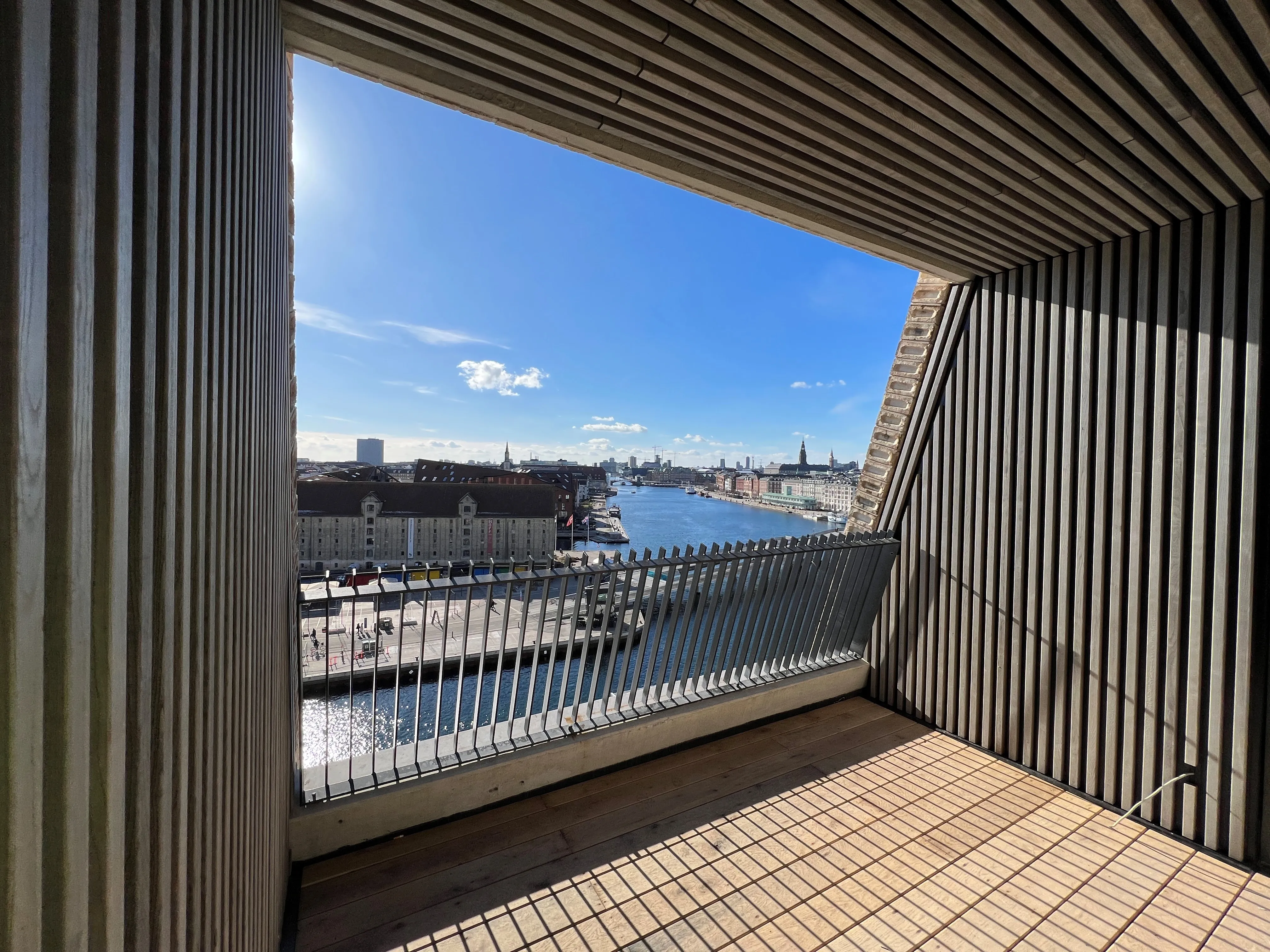

There may be a desire to install pre-patinated lamellae, which we did with our Papirøen project. Here, all lamellae are patinated identically before installation - a process that Nordisk Profil handles in collaboration with the architect and client.

Download woodfac click brochures

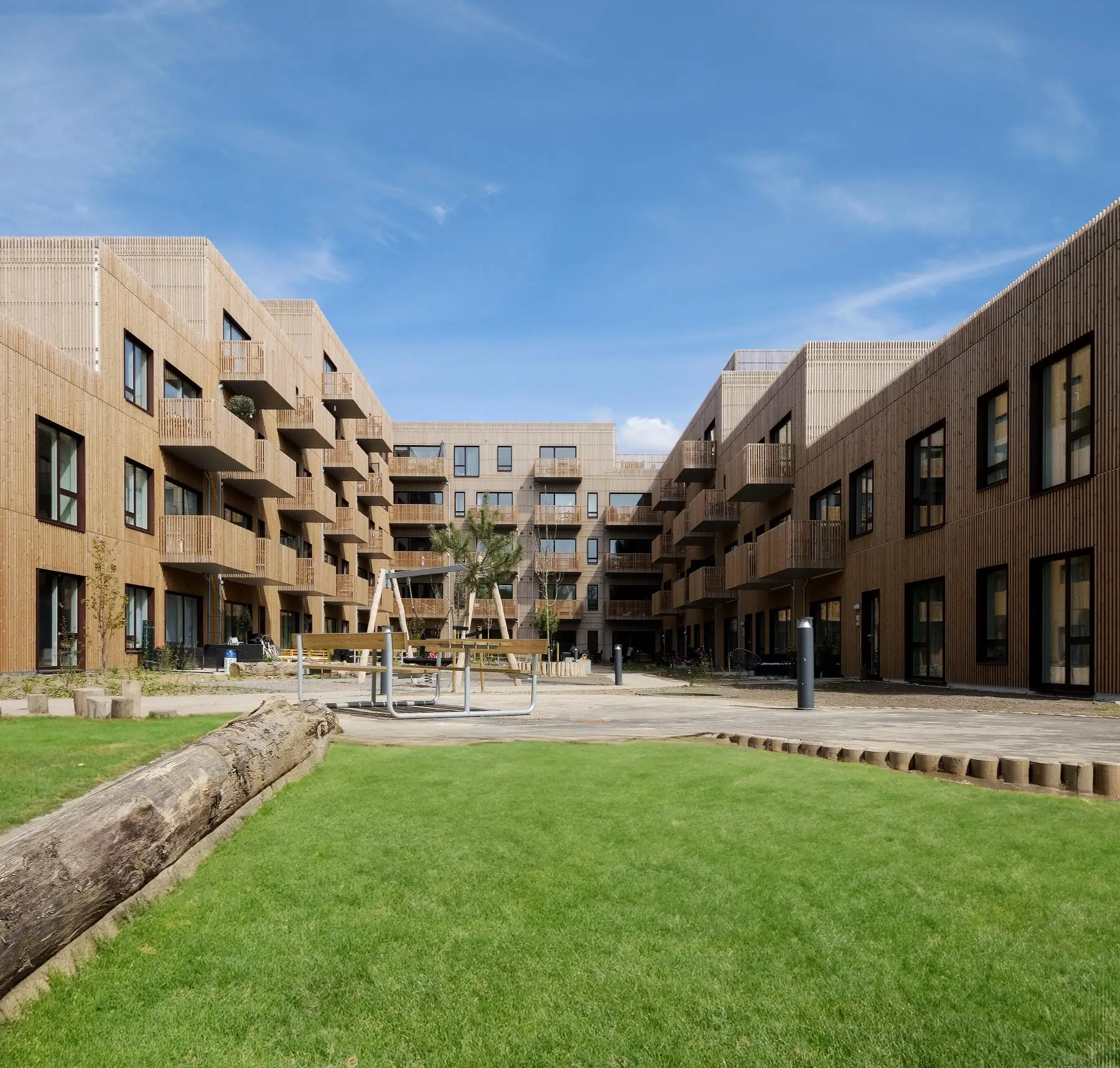

Høje Haver

Set high standards for your facade

At Nordisk Profil , we create individual Facade solutions that can transform any building project into an architectural landmark.

We build green and fireproof - and always with a focus on finding the right balance between the customer's ideas, needs, technical requirements and finances.

Our Facades are for you if you have high demands on the finished result, want to build responsibly and expect a future-proof facade of absolute top quality.

Projects

Frekvensen

Papirøen

Rortunet

Skagen Salmon

Fire and safety

We are at the forefront of fire safety with full fire safety approval and documentation of our installed facade systems.

Our green footprint

Nordisk Profil's solutions are all environmentally friendly and designed as modular and flexible systems that can be easily transformed and disassembled.
