Closed facade system with wooden slats
What is Woodfac Panel?
Certified and fire-safe climate shield
Woodfac Panel is a unique facade solution that combines climate-friendliness, fire safety, and a strong architectural expression.
The system is built as a closed climate screen that effectively protects the building against wind and weather — while at the same time allowing the facade to remain breathable through the ventilation behind it.
Woodfac Panel consists of wooden slats of your choice, mounted on a structure made of recycled aluminium. The design can be adapted as desired, with the option to mount the slats either horizontally or vertically and with variable center-to-center spacing.
Regardless of the facade project’s size or style, we deliver a complete solution that is tailored to both the architectural vision and the technical building requirements.
With Woodfac Panel, only the imagination sets the limits for the facade’s design and possibilities.

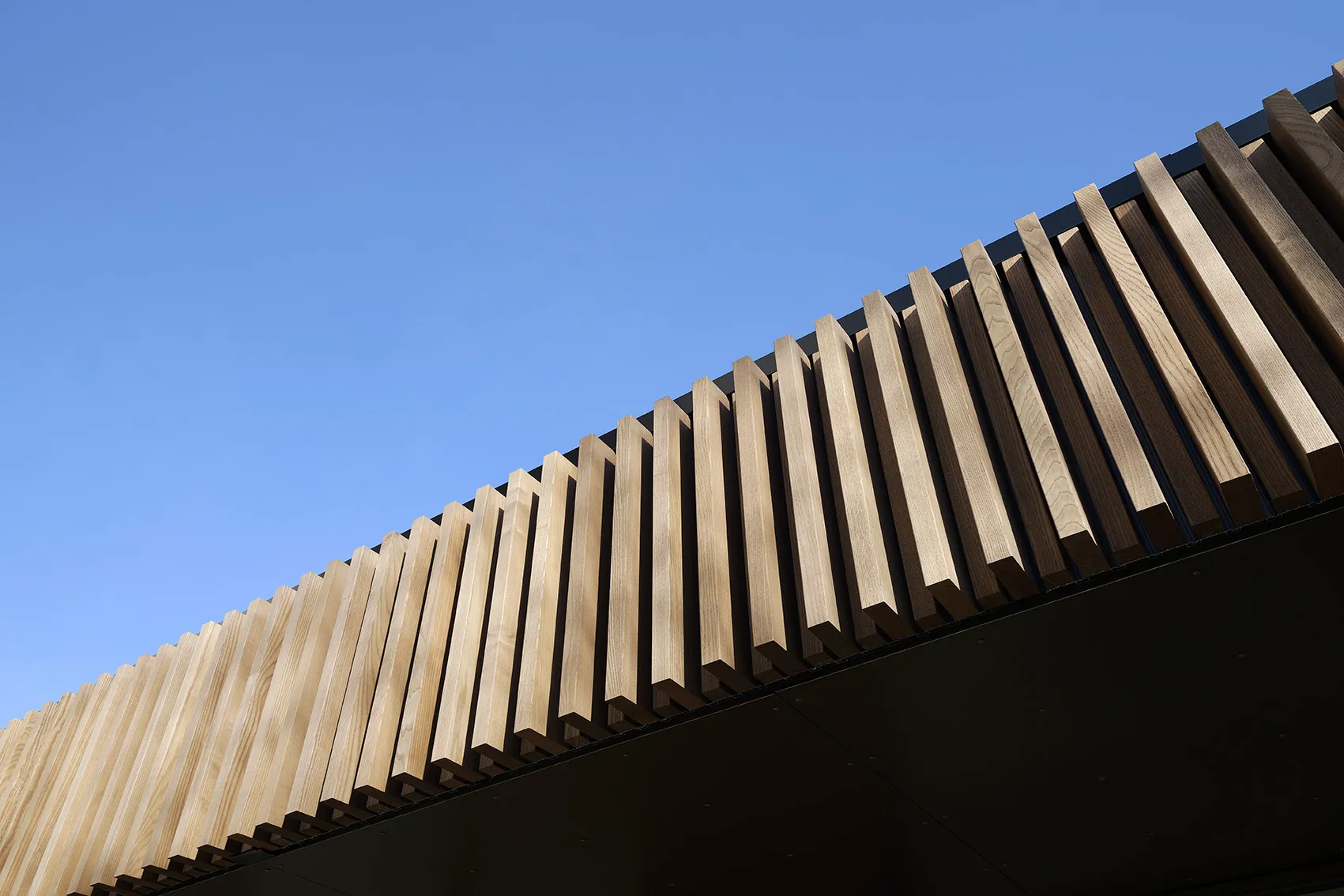

Woodfac Click is an open system with optional wooden slats on an underlying aluminum structure. With a view to the building's load-bearing facade, it's possible to compose a vibrant architecture, created through light, shadows, materials, and design.
The system offers corner solutions, various capping profiles, a solution for curved facades, and reinforcement profiles that enable large free spans both horizontally and vertically.
Woodfac Click is particularly well-suited for cladding parking garages.
With the open facade system, it becomes easy to give parking garages a certain wow factor. Many parking garages are built among beautiful residential blocks, so why not make them as inviting to look at as their environment and surroundings?
With wooden slats as cladding, you get the opportunity to construct beautiful and timeless parking garages with a natural and warm appearance that develops a beautiful patina over time.

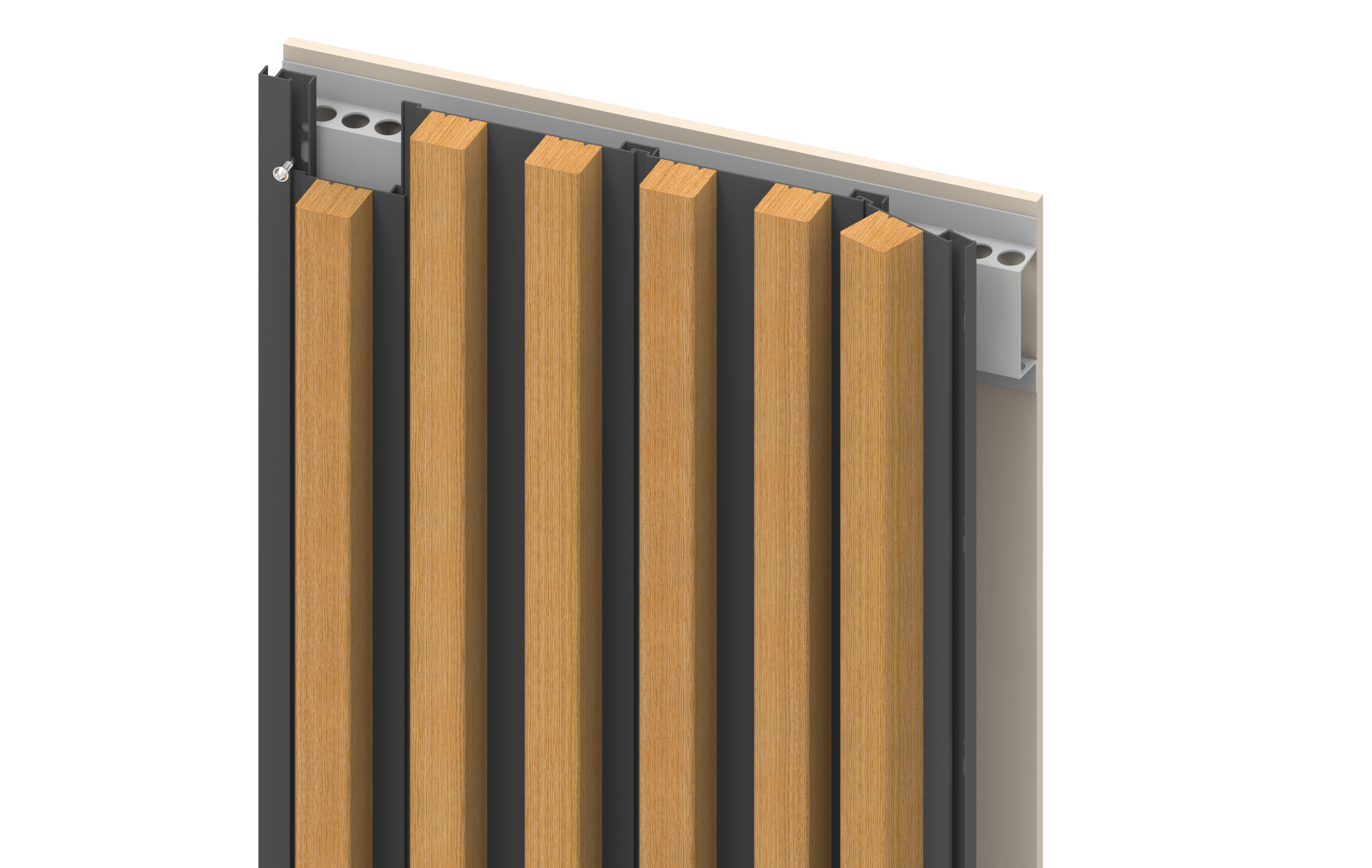

Woodfac Panel is a closed system that functions as a climate screen. The system consists of optional wooden slats mounted on aluminum panels.
The aluminum panels protect the building from weather influences and have underlying ventilation that ensures the facade can 'breathe'.
The panel solution includes variable single, double, and corner panels with punched holes for facade screws, which are hidden when the panels are clipped together.
The system offers a wide range of accessory profiles for finishing and framing doors, windows (reveal profiles), and other facade elements.
Fire safety End Use classification tested and approved according to EN 14915
Durability, approved according to the EN 16755 standard
Maintenance free
No visible screws
Built-in thermal movement
Unlimited design freedom
Quick and easy installation
Modular system
Fire safety End Use classification tested and approved according to EN 14915
Durability, approved according to the EN 16755 standard
Maintenance free
No visible screws
Built-in thermal movement
Unlimited design freedom
Quick and easy installation
Modular system
%20(1).webp)
.webp)
.webp)
Easy installation
The system consists of three components, which are installed in just three steps. Click on the link to see how this is done. Under "Downloads," you will also find an installation guide.
Optional wooden slats
Nordisk Profil recommends the following certified wood types for facade cladding, based on durability, dimensional stability, and fire safety properties. All types combine aesthetics, durability, and sustainability, guaranteeing high-quality slats. Click on each one to read more.

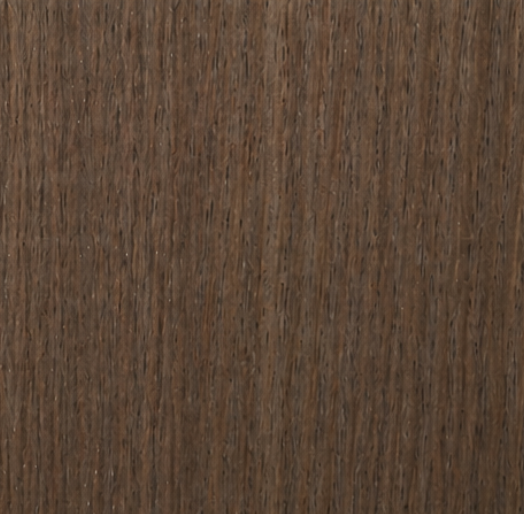

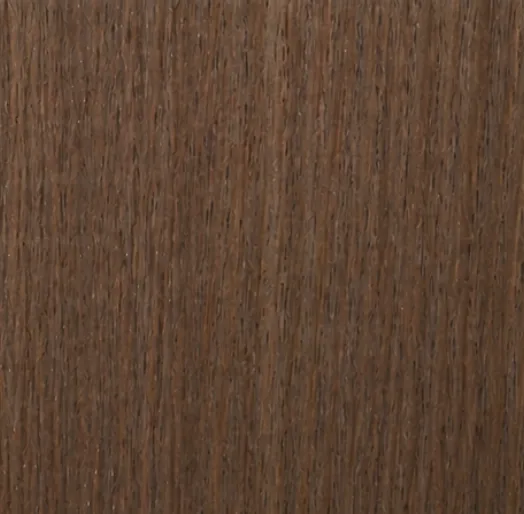

Thermo ash

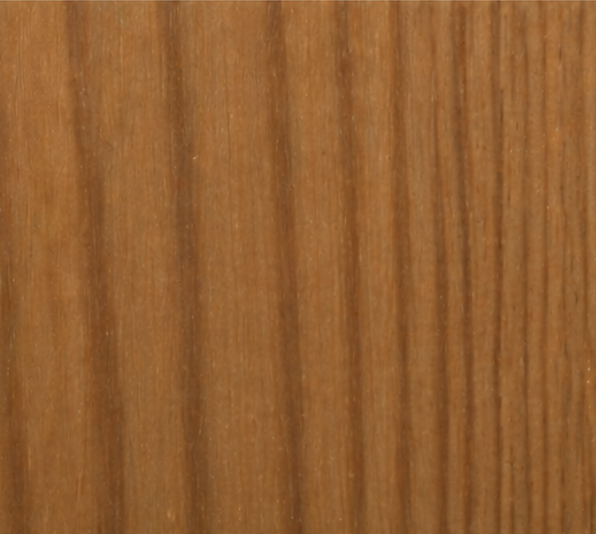

Thermo pine

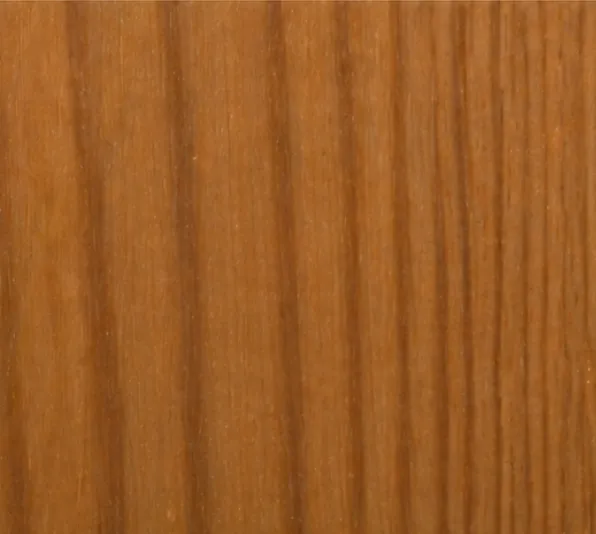

Thermo pine premium

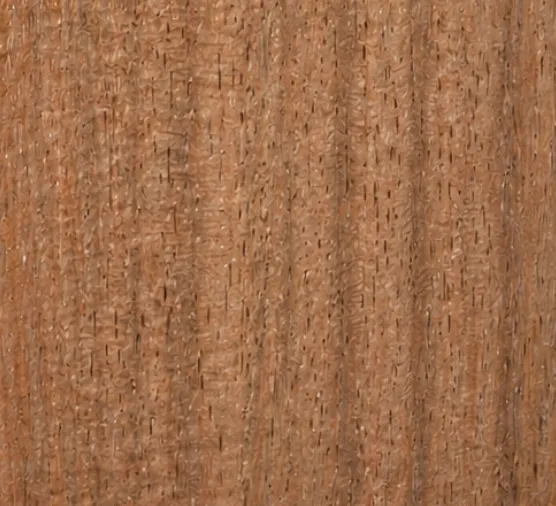

Western red cedar

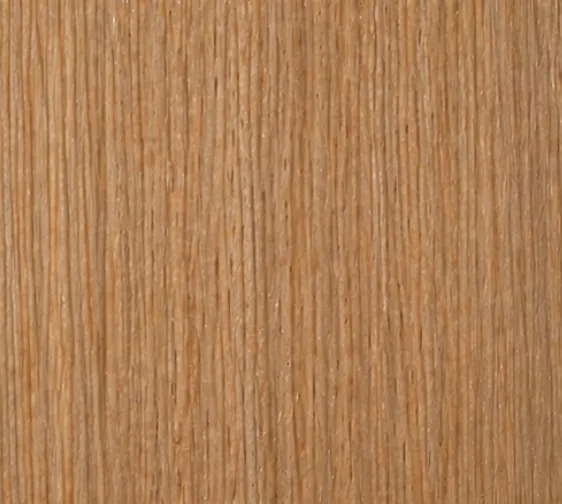

Thermo ayous

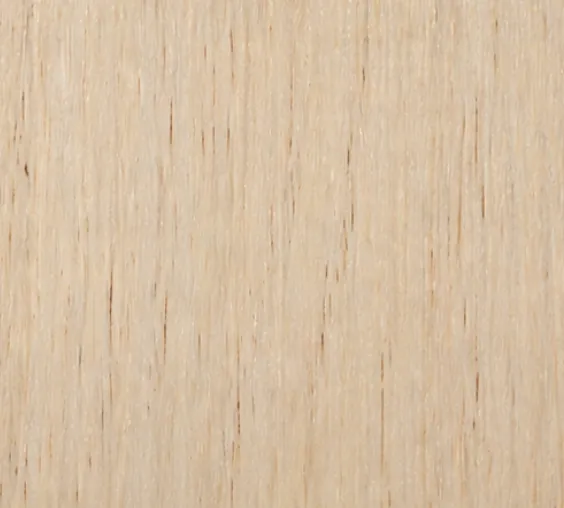

Accoya
Exclusive expression and uncompromising quality
At Nordisk Profil , we deliver Facade solutions that stand out through carefully selected materials, stylish design and high functionality. We create solutions that not only protect the building, but also enhance the overall impression and give the architecture an exclusive look.
We never compromise on the details - from Lamella to installation, everything is thought through and executed with precision.
The installation is carried out without visible screws in the slats, resulting in a crisp and harmonious look. The result is a facade that combines aesthetics with durability and minimal maintenance - designed to impress for years to come.
Easy and precise mounting
Woodfac is designed to make facade installation as simple as possible almost like building with LEGO®.
The system offers great design freedom with countless combination options, is easy to handle and creates a precise and sharp result.
The assembly consists of three components that are assembled in just three steps. The finished result is both robust and elegant and completely free of visible screws and joints.
If the facade needs to be extended later, it can be done quickly and seamlessly without visible transitions or construction challenges. The modular system also makes it easy to dismantle the facade and reuse it for other facade projects.
Fire resistant facade system
At Nordisk Profil you get facade systems with full fire approval and documentation that comply with international standards.
The lamella cladding is end-use tested and documented according to EN 13501-1 according to standard EN 13823.
Woodfac is thus a system solution that meets the fire requirements according to EN 14915. EN 14915, and is the only facade system on the market that has been tested and passed the B-s1,d0 and B-s2,d0 classification.
We have also tested and passed the reaction-to-fire facade test according to ISO 13785-1 with guarantee and quality seal for fire-resistant materials.
Nordisk Profil advises on fire classes, requirements and documentation for Facade solutions with wooden slats and helps to ensure passive fire protection in the initial phase of the building project.
Read more about fire & safety here.
Hermodsgade
Transform with respect
At Nordisk Profil, we are specialists in modular facade solutions that combine architectural freedom with the ability to meet the stricter requirements for LCA calculations.
Our solutions come with the market’s leading EPDs, providing security and documentation for green and responsible construction — whether it is renovation or new build.
We have several strong examples of how our facade systems have helped breathe new life into buildings. One of them is the transformation of the former Electrolux building on Hermodsgade in Copenhagen, which today houses modern student residences. Here, we contributed with Woodfac Panel and helped preserve the building’s beautiful character.
The project clearly demonstrates how the “right” architectural visions and the right solutions can transform the buildings of the past into the sustainable homes of the future — without demolition and rebuilding from scratch.

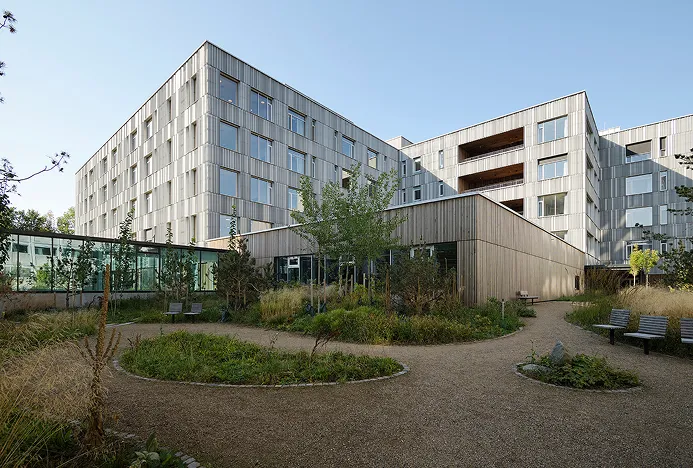

Rigshospitalet Bodil Eskesen Centeret
Set high standards for your facade
At Nordisk Profil, we create individual facade solutions that can transform any construction project into an architectural landmark. We build green and fire-safe – and always with a focus on finding the right balance between the client’s ideas, needs, technical requirements, and budget.
Our facades are for those who set high standards for the finished result, want to build responsibly, and expect a future-proof facade of absolute top quality.
